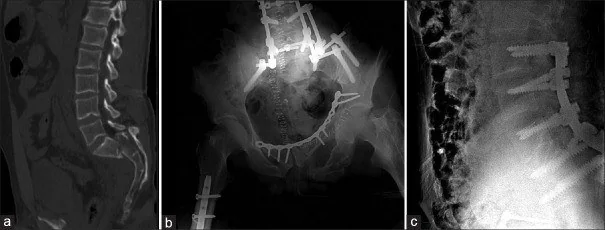

Denis zon 3 ve transvers sakral kırık

Özet

Denis zon 3, kırık hattının sakral foraminaların medialinde kanal tarafında ilerlediği yerleşimi tanımlar. Klasik zon 3 örüntüsü çoğunlukla transvers bileşenli U/H tipi kırık ve spinopelvik ayrışmadır; ancak medialdeki her kırık bu ayrışmayı oluşturmaz. İnce kesitli BT’de dikey ve transvers kolları, korpus basamaklanmasını ve kanaldaki retropulse fragmanları birlikte izleyin; multiplanar değerlendirme olmadan instabiliteyi eksik tanımlama riski vardır.

Faz ve pencere

Kontrastsız tanısal

Kontrastsız BT kırık geometrisi, deplasman ve kanal çapındaki kemik kaynaklı daralmayı gösterir; aktif kanama veya damar yaralanmasının değerlendirilmesi için kontrastlı görüntüleme gereklidir. İnce kesit kemik rekonstrüksiyonlarında sakral foraminaların medialindeki kortikal kesinti, korpus boyunca yatay/transvers hat, iki dikey sakral kanat kolu ve kanal içine uzanan retropulse fragman seçilir.

Önerilen pencereler: Kemik (G 1800 / M 400), Yumuşak doku (G 400 / M 40).

BT bulguları

• Sakral foraminaların medialinde, sakral kanala giren kortikal kırık hattı
• Sakral korpusu yatay kesen transvers bileşen; düzeyi S1-S5 boyunca değişebilir
• İki dikey transforaminal veya foramina medialindeki kolu transvers hatla birleştiren U/H örüntüsü
• Lumbosakral bileşkenin alt sakrum ve pelvisle kemik sürekliliğinin kesilmesi
• Korpusun öne kayması, açılanması veya kifotik basamaklanması
• Kanal içine retropulse kemik fragmanı ve sakral kanal konturunda daralma
• Eşlik eden sakral foraminal kırıklar, SI eklem hasarı ve ön halka kırıkları

Ölçütler ve sınıflamalar

Denis sakral zonları

Denis zon 1 foraminaların lateralinde, zon 2 foraminaların içinden, zon 3 medialinde/kanal tarafındadır. Denis zon 3 kırıkları sakral kanalı tutar; yüksek enerjili travmalarda transvers bileşenli U veya H tipi kırıklar sık görülen spinopelvik ayrışma örüntüleridir. Hat yönü, kanal ilişkisi ve spinopelvik sürekliliği ayrı tarif edin.

Roy-Camille transvers sakral kırık sınıflaması

Roy–Camille sınıflaması transvers sakral kırıklarda üst fragmanın öne veya arkaya kaymasını tanımlar; tip III tam antevertebral displasman ile karakterizedir.

AO Spine sakral yaralanma sınıflaması

AO Spine sınıflamasında B1, sakral kanalı tutan Denis zon 3 tipi yaralanmayı; C0 deplase olmayan U tipi kırığı, C3 ise deplase U tipi kırığı tanımlar. Zon 3 ifadesi tek başına C tipi veya spinopelvik ayrışma anlamına gelmez.

Normalde

Normal sakrumda korpus arka duvarı ve sakral kanalın kemik konturu kesintisizdir; foraminalar iki tarafta düzenli aralıklarla izlenir.

Ayırıcı tanı

Sakral ala yetmezlik kırığı

foraminaların lateralinde dikey alar sklerotik hatlar ve eşlik eden kemik yoğunluğu kaybı ön plandadır.

Denis zon 2 kırığında hat sakral foraminalar bölgesindedir; sakral kanalı tutan zon 3 örüntüsünden bu yönüyle ayrılır.

Sakrokoksigeal transvers kırık

daha kaudalde koksiks veya sakrokoksigeal bileşkeyi tutar, S1-S3 korpus ayrışması yaratmaz.

Sakral metastatik lezyon

kortikal yıkımla birlikte litik/sklerotik odak ve yumuşak doku bileşeni görülebilir; travmatik keskin hat görünümü tipik değildir.

Tuzaklar

• Tek taraflı transforaminal kırığa eşlik eden karşı SI eklem ayrışmasını aramamak, tamamlanmamış gibi görünen T veya lambda örüntüsünde instabiliteyi eksik sınıflandırabilir.
• H tipi sakral kırıkta üç boyutlu BT rekonstrüksiyonunda bilateral dikey ve transvers bileşenleri birlikte değerlendir.
• Kanal içi kemik fragmanı ile yalnız yumuşak doku hematomunu ayır; kemik algoritmasında fragmanın kortikal devamlılığını izle.

Kendini dene

1. Yüksek enerjili travma sonrası sagittal BT'de S2'nin üst fragmanı kifotik ve arkaya ötelenmiş. Hangi örüntü en olasıdır?

   • Roy-Camille tip II
   • Denis zon 1
   • Sakral ala yetmezliği
   • Sakrokoksigeal ayrılma
   Cevabı göster

   Roy-Camille tip II. Kifozla birlikte üst sakral fragmanın retrolistezisi Roy-Camille tip II ile uyumludur. Denis zon 1 alar bölgenin yerini belirtir; yetmezlik kırığı düşük enerjili alar paterndir; sakrokoksigeal ayrılma bu S2 deplasmanını açıklamaz.

2. BT'de kırık hattı sakral foraminaları tutuyor ve sakral kanala uzanmıyor. Bu kırık hangi Denis zonundadır?

   • Zon 1
   • Zon 2
   • Zon 3
   • AO Spine C3
   Cevabı göster

   Zon 2. Foraminalar bölgesindeki ve sakral kanalı tutmayan kırık Denis zon 2 olarak sınıflanır. Zon 1 sakral kanat bölgesindedir; zon 3 sakral kanalı tutar. AO Spine C3 ise deplase U tipi sakral kırığı tanımlar.
