TIPS’in BT görünümü BT bulguları

Özet

Transjuguler intrahepatik portosistemik şant (TIPS), portal ven ile hepatik venler arasında düşük dirençli bir kanal oluşturur. TIPS bulunan hastada kontrastlı BT, şantın anatomik güzergâhını, stent içi kontrast devamlılığını ve portal hipertansiyona eşlik eden karın bulgularını gösterir. BT anjiyografide açık TIPS içinde de kalıntı trombüs görülebilir; bu nedenle şantın açık görünmesi stent içi trombüsü dışlamaz.

Faz ve pencere

Portal tanısal: Portal venöz opaklaşma sırasında stent boyunca kontrastın sürekliliği ve portal ven ile hepatik ven/IVC bağlantısı izlenir; kontrastlanmayan intrastent dolum defekti trombüs veya stenoz kuşkusu doğurur, ancak metal artefaktı lümeni örtebilir.

Önerilen pencereler: Karaciğer (G 150 / M 30), Batın (G 400 / M 50), Anjiyo (G 600 / M 150).

BT bulguları

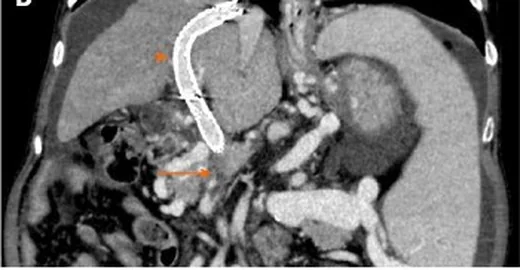

TIPS, portal ven ile hepatik venler arasında intrahepatik düşük dirençli bir kanal oluşturur.
Portal ven dalı ile hepatik venöz çıkış arasında izlenebilen kesintisiz stent gövdesi
BT anjiyografide TIPS içinde trombüs görülebilir.
BT anjiyografide, açık görünen TIPS içinde de stent içi kalıntı trombüs saptanabilir.
Metal stentin görülmesi trombüsü dışlamaz; BT anjiyografide TIPS içinde trombüs saptanabilir.
Splenomegali, kollateral damarlar, özofagogastrik varisler ve asit gibi portal hipertansiyon bulguları

Normalde

TIPS olmayan normal karaciğerde porta hepatis'ten çıkan portal dallar ile karaciğerden çıkan hepatik venler ayrı damar yataklarıdır; aralarında metalik, kesintisiz intrahepatik kanal bulunmaz. TIPS'li BT'de stent boyunca kontrast kolonu olup olmadığını, stentin hangi portal dalı hangi hepatik venöz çıkışa bağladığını ve çevre normal portal/hepatik venlerin kendi anatomik seyirlerini koruyup korumadığını kıyasla.

Normal BT ile kıyasla

Aynı bölgenin, kaynak veri setinde patoloji içermediği belirtilen bir BT incelemesini kesit kesit kaydırın; organ sınırlarını açarak anatomiyi hasta görüntüsüyle karşılaştırın. Küçük rastlantısal bulgular tümüyle dışlanmamıştır.

Kaynak: TotalSegmentator v2.01 veri seti (Wasserthal ve ark., Radiology: Artificial Intelligence 2023), CC BY 4.0, vaka s0541; organ sınırları veri setinin otomatik segmentasyonundan, birleştirilerek sadeleştirildi. Görüntüler 2,5 mm kesit aralığına yeniden örneklendi.

Ayırıcı tanı

Portal ven trombozu: portal ven lümeninde trombüs izlenebilir ve splenik vene uzanabilir; TIPS içinde de eşlik eden trombüs bulunabilir.
Hepatik ven trombozu: çıkış damarında kontrastlanmayan lümen ve karaciğerde konjesyon görülür; TIPS metal gövdesi kendi içinde patent olabilir.
Cerrahi portosistemik şant: ekstrahepatik greft veya damar bağlantısı şeklindedir; karaciğer parankimi içinde portal daldan hepatik vene uzanan stent kanalı görünmez.
Portal venöz kollateraller: porta hepatis çevresinde kıvrımlı çoklu damarlar oluşturur; tek bir düzgün kalibreli metal stent gövdesi içermez.

Tuzaklar

Stent metalinin görülmesi açıklığı kanıtlamaz; BT anjiyografide stent içi trombüs ayrıca değerlendirilmelidir.
Portal venöz fazlı kesitsel görüntüleme, kollateral yolları ve portal-mezenterik trombozu değerlendirmeye yardımcı olur; TIPS ve portal venöz yapıları bu fazda gözden geçir.
TIPS güzergahının aşırı eğriliği veya inferior vena kavadan uzak olması şant disfonksiyonu riskini artırır; stent uçlarının damar içi konumu ve traktın merkeziliği değerlendirilmelidir.

Kendini dene

Siroz nedeniyle TIPS uygulanmış hastanın portal faz BT'sinde metal stent sağ portal daldan sağ hepatik vene uzanıyor ve lümen kontrastla doluyor. Bu görünüm neyi gösterir?
Cevabı göster
Patent görünümlü TIPS. Stentin portal dal ile hepatik venöz çıkış arasında uzanması ve portal fazda lümen boyunca kontrast görülmesi patent görünümlü şantı destekler. Anevrizma fokal venöz genişlemedir; Budd-Chiari hepatik venöz çıkış bozukluğudur; kavernöz transformasyon porta hepatis çevresindeki kollateral ağdır.
TIPS metal gövdesi seçiliyor ancak portal fazda şant lümeninin bir bölümü opaklaşmıyor. Bu bulgunun en doğru yorumu nedir?
Cevabı göster
Trombüs kuşkusu. Kontrastlanmayan intrastent segment trombüs kuşkusu doğurur; BT anjiyografide TIPS trombozu ve stent içinde artık trombüs görülebilir. Patent görünümlü bir TIPS'te bile stent içinde artık trombüs bulunabilir; BT anjiyografide stent içi trombüs değerlendirilmelidir.
